WE ACCEPT PAY PAL, CHECKS,MONEY ORDERS, AND ALL THESE CREDIT CARDS

Sorry, we no longer accept American Express cards.

THE “HOG” W/O THE MOTOR, $259.95; THE “HOG” WITH MOTOR#0401 $459.95 + S&H (CALL FOR RATES)

HERE IT IS, THE THICKNESS SANDER DESIGNED, MACHINED, AND BUILT LIKE NO OTHER.”THE HOG”.THE HOG IS MACHINED OUT OF SOLID AIRCRAFT ALUMINUM, NO SHEET METAL.YOU CAN SAND PIECES UP TO 1 INCH THICK, ALL THE WAY DOWN TO .005”.

#0401

THE HOG THICKNESS SANDER, WITH A POWERFULL 1/3 HORSE MOTOR

THE HOG THICKNESS SANDER COMES WITH A POWERFUL 1/3 HP ELECTRIC BLOWER MOTOR, ALMOST IMPOSSIBLE TO STALL OUT.

THE HOG ALSO COMES WITHOUT A MOTOR. READY TO BE HOOKED UP TO A POWER SOURCE OF YOUR CHOICE.IT’S THE SAME THICKNESS SANDER, JUST WITHOUT WOOD BASE AND THE MOTOR.

HOW TO ORDER

#0402

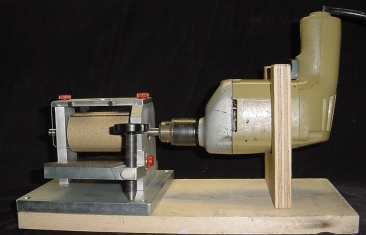

THIS IS AN EXAMPLE OF AN EASY TO MAKE DRILL HOLDER WITH 1/2” PLYWOOD.(WE DON’T MAKE OR SELL THESE)WE MADE THIS ONE IN ABOUT 5 MIN.

ABOVE IS A SIMPLE AND INEXPENSIVE WAY TO POWER UP YOUR HOG THICKNESS SANDER. USE ANY REVERSING 3/8” OR 1/2” DRILL MOTOR.THEY ARE ALMOST IMPOSSIBLE TO STALL OUT.

SEE OUR FLEX SHAFT ADAPTER KIT BELOW

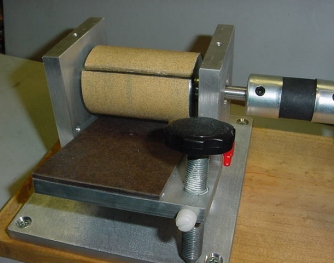

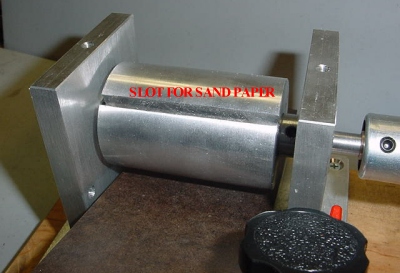

THE SLOT IN THE 2” SANDING DRUM IS THE KEY TO CHANGING AND USING ANY GRIT REGULAR SHEET SANDPAPER. NO SANDING SLEEVES TO BUY. ALSO JUST 2 THUMB SCREWS ON THE VACUUM PLATE TO REMOVE AND CHANGE THE SANDPAPER.

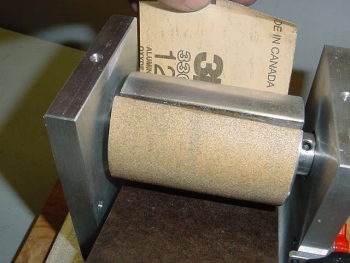

NO SANDING DRUMS TO BUY. YOU DO NOT HAVE TO TAKE APART YOUR SANDER TO CHANGE SANDPAPER. JUST REMOVE THE LID WITH THE 2 THUMB SCREWS. CUT ANY GRIT SANDPAPER SHEET 3” WIDE X 6 &3/4” LONG, FOLD THE SANDPAPER IN THE SLOT, ROLL IT ALL THE WAY AROUND, AND FOLD THE OTHER END INTO THE SLOT.

NO SANDING DRUMS USE ANY GRIT SANDPAPER!

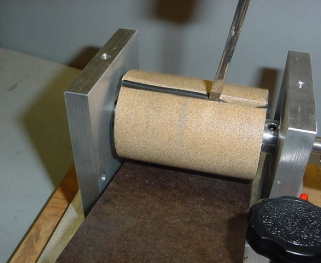

HOLD THE SANDPAPER IN PLACE WITH ONE HAND, AND INSERT THE RUBBER PIECE IN THE SLOT, AND PUSH IN WITH A SCREW DRIVER, OR A PAINT STICK, AS SHOWN ON THE LEFT. THE FURTHER IN YOU PUSH THE RUBBER, THE BETTER THE SANDPAPER HOLDS.

BELOW; READY TO GO. JUST REPLACE LID

SO EASY TO CHANGE TO ANY GRIT SANDPAPER IN JUST SECONDS! CUT THE PIECE 3” WIDE X 6.3/4” LONG.

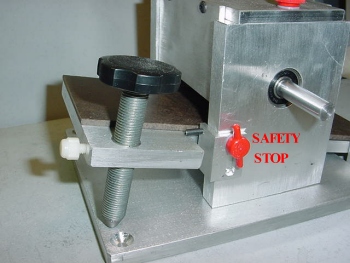

OUR EXCLUSIVE SAFETY STOP PREVENTS YOU FROM ACCIDENTALLY RUNNING INTO THE MASONITE WEAR PLATE WITH THE SANDING DRUM. BUT IF THAT DOES HAPPEN YOU CAN REPLACE THE WEAR PLATE

HOW TO ORDER

SPECIFICATIONS:

  • SANDING DRUM; 2” DIAMETER X 3” WIDE, USES ANY SANDPAPER.
  • BASEPLATE: 1/2” THICK X 6” WIDE X 7” LONG
  • TILT TABLE: 3/8 “ THICK X 3” WIDE X 8 1/2” LONG
  • MASONITE WEAR PLATE: 1/8” THICK X 3” WIDE X 8 1/2” LONG
  • SANDING CAPACITY : 1.0” TO .005” X 3” WIDE
  • MOTOR : 1/4 HP; 1750 RPM; 115 VOLTS; #48 FRAME

FLEX SHAFT ADAPTER KIT

THE FLEX SHAFT ADAPTER IS FOR MOTORS WITH 1/2” SHAFTS. $25.00

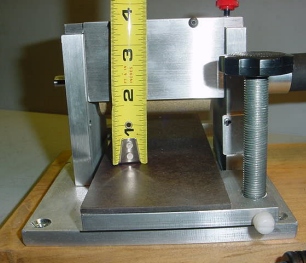

A FULL 1.0” INCH CAPACITY

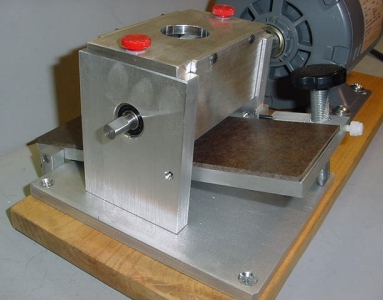

ALL HOG SANDERS HAVE SEALED, HIGH GRADE BALL BEARINGS. NO BUSHINGS!

PART #0401

THE HOG THICKNESS SANDER WITH MOTOR 1/3 HORSEPOWER MOTOR $459.95 Call for SHIPPING & HANDLING ON THE HOG WITH THE MOTOR

 Hog Sander W/O The Motor

HOW TO ORDER

THE HOG THICKNESS SANDER WITHOUT A MOTOR;     $259.95+ $16.00 SHIPPING AND HANDLING

Larry,
Just a short note to let you know the "HOG" arrive in good order
yesterday. Wow! What a great little machine!

Several months ago I made a home-made thickness sander using a 3"
diameter rubber sanding drum and powered it with a 3/4 motor.  However,
every time I needed to change the  sanding sleeve I had to completely
take it apart.  About an hours worth of  work.

In short, I used the base with the motor and mounted the "HOG" on  it and
in about 20 minutes I was sanding laminations for a new  longbow.

Your "HOG" is just what the doctor ordered for me. The quick change
system works beautifully.  I replaced the installed paper with some  60
grit and it cuts like a dream.The aluminum drum stays cool as do the
bearings and their is little to no vibration. Also, the vacuum plate
captures almost all the dust.

I am very pleased with this purchase but would like to know where I can
get replacements for the rubber string used to secure the sanding paper.

Thanks for such a great product and  fast shipping.

Rocky W.
